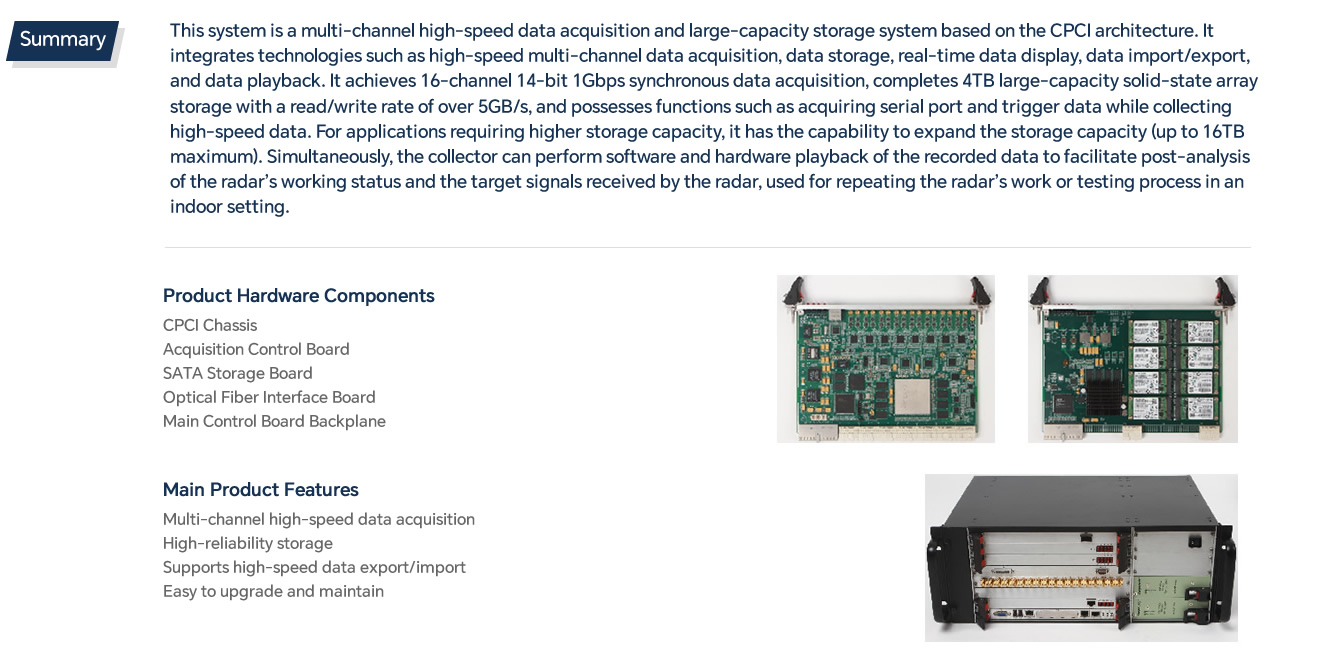

This system is a multi-channel high-speed data acquisition and large-capacity storage system based on the CPCI architecture. It integrates technologies such as high-speed multi-channel data acquisition, data storage, real-time data display, data import/export, and data playback. It achieves 16-channel 14-bit 1Gbps synchronous data acquisition, completes 4TB large-capacity solid-state array storage with a read/write rate of over 5GB/s, and possesses functions such as acquiring serial port and trigger data while collecting high-speed data. For applications requiring higher storage capacity, it has the capability to expand the storage capacity (up to 16TB maximum). Simultaneously, the collector can perform software and hardware playback of the recorded data to facilitate post-analysis of the radar's working status and the target signals received by the radar, used for repeating the radar's work or testing process in an indoor setting.
Product Hardware Components
Main Product Features
